Product RangeSignal Isolators & TransducersSignal
Voltage to Current Transducer
- MODEL NAME : TX-205
- INPUT : DC Voltage in mV or VDC
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Temperature Transducer
- MODEL NAME : TX-210
- INPUT : RTD Pt-100 (3/4 wire)
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Temperature Transducer
- MODEL NAME : TX-215
- INPUT : Thermocouple J/K/R/S
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Current Transducer
- MODEL NAME : TX-120
- INPUT : AC Ampere (1A/5A)
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Current Transducer (Dual out)
- MODEL NAME : TX-125
- INPUT : AC Ampere (1A/5A)
- OUTPUT : 4 to 20 mA DC (Dual, Iso)
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Signal Isolator
- MODEL NAME : TX-230
- INPUT : 4 to 20 mA DC
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Signal Isolator
- MODEL NAME : TX-235
- INPUT : DC Voltage in mV or VDC
- OUTPUT : DC Voltage in mV or VDC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
Resitance to Current Transducer
- MODEL NAME : TX-240
- INPUT : Resistance, Variable.
- OUTPUT : 4 to 20 mA DC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC

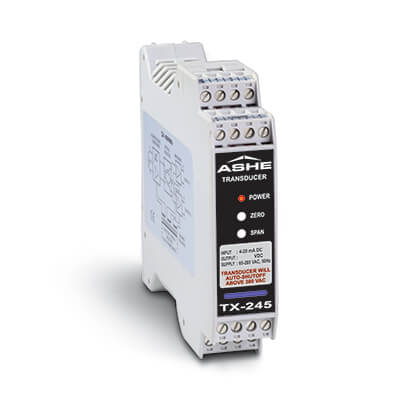

Current to Voltage Transducer
- MODEL NAME : TX-245
- INPUT : 4 to 20 mA DC
- OUTPUT : DC Voltage in mV or VDC
- ISOLATION : Optical and Galvanic
- EXECUTION : DIN Rail mounted
- POWER SUPPLY : 90-270VAC,50/60Hz or 20-70VDC
